LFA Posted November 15, 2020 Share Posted November 15, 2020 View File Remote Admin Do not install this module if your master is running Linux This module can be used to: Connect to remote desktop/ssh directly from the control panel. Give dedicated server owners remote desktop/ssh access to their server. (For security reasons the remote desktop user should not be an administrator and it should have permissions denied on the TCAdmin folder) Troubleshoot game servers with a single click instead of logging in and executing the commands manually. Give sub admins access to troubleshoot game servers as TCAGame so they don't need full administrator access. **Notes** Linux masters are not supported. Master must be running Windows 10/2012/2016/2019 but Linux remotes are supported. Requires 2.0.159.15 or greater. Installation of this module can take a few minutes while installing dependencies. Instructions Windows Server 2012: install Windows Management Framework 5.1 and reboot. (required on master and remotes) Windows Server 2016/2019: no additional software is required. If control panel is hosted in IIS: Make sure the panel can be accessed using 127.0.0.1 and the same port used by your other bindings. Install the module. Go to the server settings. Click on the remote admin icon at the bottom. Add the information required to connect to the server. The password hash that is generated can only be decrypted on the master server. If you change masters the hashes need to be generated again. You can add more than one login method. If the server is owned by a user you can specify if you will allow access. If guest login is blank it will use the default login. Go back to the servers list. You should see the column with the "Connect" link. If you don't see it select Grid Settings > Reset. The server owner can connect using the servers page under service management. Sub admin role permissions You control the features a sub admin can access. Give them full access or only let them log in as the game server's user. Server Management > Remote Admin - Connect: Allows sub admins to connect to the server with remote desktop or ssh using the account specified for sub admins. Server Management > Remote Admin - Connect (Service User): Allows sub admins to connect to the server using the a game server's TCAGame account. This can be used to allow a sub admin to troubleshoot a game server without giving him full access. Server Management > Remote Admin - Configure: Allows sub admins to configure the remote desktop /ssh connections of each server. One Click Troubleshooting The troubleshoot button in the service home page is visible when the service is in stopped or start error status. Select Troubleshooting > RDP/SSH for service user. It will connect to RDP or SSH and execute the commands to start the game server. Remote Desktop session recordings A video of each remote desktop session recording is saved to TCAdmin2\Logs\RemoteAdmin\UserName This is configured in Server Management > Servers > Master > Remote Admin > Global Settings. Connecting to a Hyper-V VM The server you specify should be the host IP. The login should be a Windows user from the host that belongs to the "Hyper-V Administrators" group. To get the GUID of a VM open powershell and execute: Get-VM | format-list VMname, VMID VM enhanced mode Only supported if the guest VM is running Windows or Ubuntu with xRDP (see https://c-nergy.be/blog/?p=12429 ). Only works when the guest operating system has finished booting. To be able to see the VM while booting up add another entry with this option disabled. Known Issues Reinstall/update might not work. In this case it is safe to uninstall and install again. No data will be lost. When uninstalling it might not delete TCAdmin\Monitor\Components\Myrtille. You can delete this manually. Performance/responsiveness is better with IIS than with the built in web server. Submitter LFA Submitted 11/15/20 Category Modules Link to comment Share on other sites More sharing options...
CloudNine Posted November 26, 2020 Share Posted November 26, 2020 Does this function on Windows Server 2012 only for windows os? Link to comment Share on other sites More sharing options...
LFA Posted November 26, 2020 Author Share Posted November 26, 2020 Works on any Windows master and supports linux/windows remote servers. On 2012 you need to install this and reboot before installing the module: http://aka.ms/wmf5download Link to comment Share on other sites More sharing options...
CloudNine Posted November 27, 2020 Share Posted November 27, 2020 17 hours ago, LFA said: Works on any Windows master and supports linux/windows remote servers. On 2012 you need to install this and reboot before installing the module: http://aka.ms/wmf5download Let me rephrase, is this confirmed working on Windows 2016 and Windows 2019? Link to comment Share on other sites More sharing options...
conceptr980 Posted November 28, 2020 Share Posted November 28, 2020 On 11/27/2020 at 11:11 AM, CloudNine said: Let me rephrase, is this confirmed working on Windows 2016 and Windows 2019? So far im testing it on win 2019 and no issues so far. Ill keep you posted if there is any. Link to comment Share on other sites More sharing options...
Gotteshand Posted November 29, 2020 Share Posted November 29, 2020 Hi, I have a problem with the remote plugin I can't get it installed and when I try to install the download this link http://aka.ms/wmf5download Windows says the update is not suitable for this Windows. Link to comment Share on other sites More sharing options...
Gotteshand Posted November 29, 2020 Share Posted November 29, 2020 i Have now use https://support.microsoft.com/de-de/help/3191564/update-for-windows-management-framework-5-1-for-windows-8-1-and-window And i Test it Link to comment Share on other sites More sharing options...
Gotteshand Posted November 29, 2020 Share Posted November 29, 2020 (edited) No Unfortunately the mod cannot be installed Can it have to do with Windows access rights ? In the TEMP folder you can find the downloaded mod as zip file "Module.zip". Edited November 29, 2020 by Gotteshand Link to comment Share on other sites More sharing options...
LFA Posted December 1, 2020 Author Share Posted December 1, 2020 Problem was that you didn't have TCAdmin 2.0.159.15 or greater. 1 Link to comment Share on other sites More sharing options...

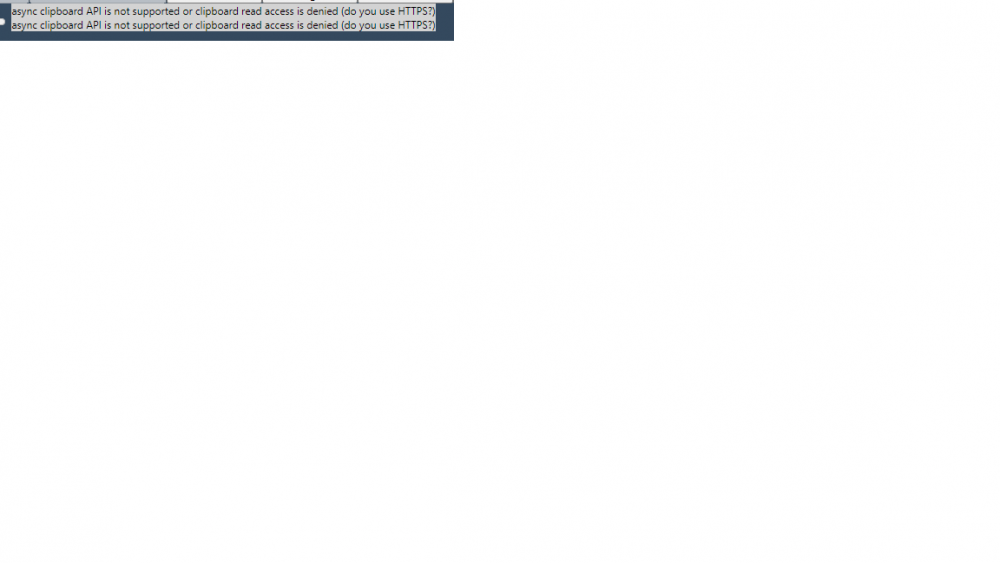

LaGgIs Posted January 12, 2021 Share Posted January 12, 2021 Hey mate i have tried this out and install it was not a problem. The problem i have its that im getting this weird massage "async clipboard api is not supported or clipboard read access is denied (do you use HTTPS?)" ps not sure if thats the problem but it dosent give me any error and thats the only thing the debug its giving me Im using windows 2016. Tcadmin version 2.0.160.0 Link to comment Share on other sites More sharing options...
LFA Posted January 25, 2021 Author Share Posted January 25, 2021 For copy/paste you need to access your control panel with https. This is required by the browser's security. Link to comment Share on other sites More sharing options...
revowow Posted February 7, 2021 Share Posted February 7, 2021 Clicking the Generate Hash button, keeps just saying "This field is Required" Any fixes? Link to comment Share on other sites More sharing options...
Jus61 Posted December 23, 2022 Share Posted December 23, 2022 When I click on this button: RDP - Remote Desktop Connection (service user) Opens a new window and with this message: Object reference not set to an instance of an object. Have I overlooked something during the setup??? Connection with "RDP - Remote Desktop Connection" works!! Link to comment Share on other sites More sharing options...
Rislem Posted July 16, 2023 Share Posted July 16, 2023 Hallo I been using this for very long works perfectly on my master and several of my remotes, except one. I get t his error on my remote any idea how to fix? Link to comment Share on other sites More sharing options...
odaconnelly Posted July 17, 2023 Share Posted July 17, 2023 Check the bluetooth or replace the battery for the device you want to connect. badland Link to comment Share on other sites More sharing options...
